Bring your vision of a serene woodland retreat or a stylish backyard studio to life with our comprehensive A-Frame Tiny House Plans. This design masterfully blends contemporary architecture with the timeless warmth of a timber-frame structure, offering a 200 sqft (19 m2) footprint that feels surprisingly spacious. Measuring 12'4" x 16'8" (3.76 m x 5.49 m), this cabin is meticulously engineered for the modern DIY enthusiast who values both form and function.
The interior features a thoughtfully curated open-layout bedroom and living area, complemented by a private, fully equipped bathroom. Outside, an integrated front veranda extends your living space into nature, perfect for morning coffee or evening sunsets. With a classic 60-degree roof pitch and exposed interior roof timbers, this cabin offers an aesthetic that is as beautiful to inhabit as it is rewarding to build.
What’s Included in Your Digital DIY Kit:
We provide every technical detail necessary to take you from a level foundation to a finished home:

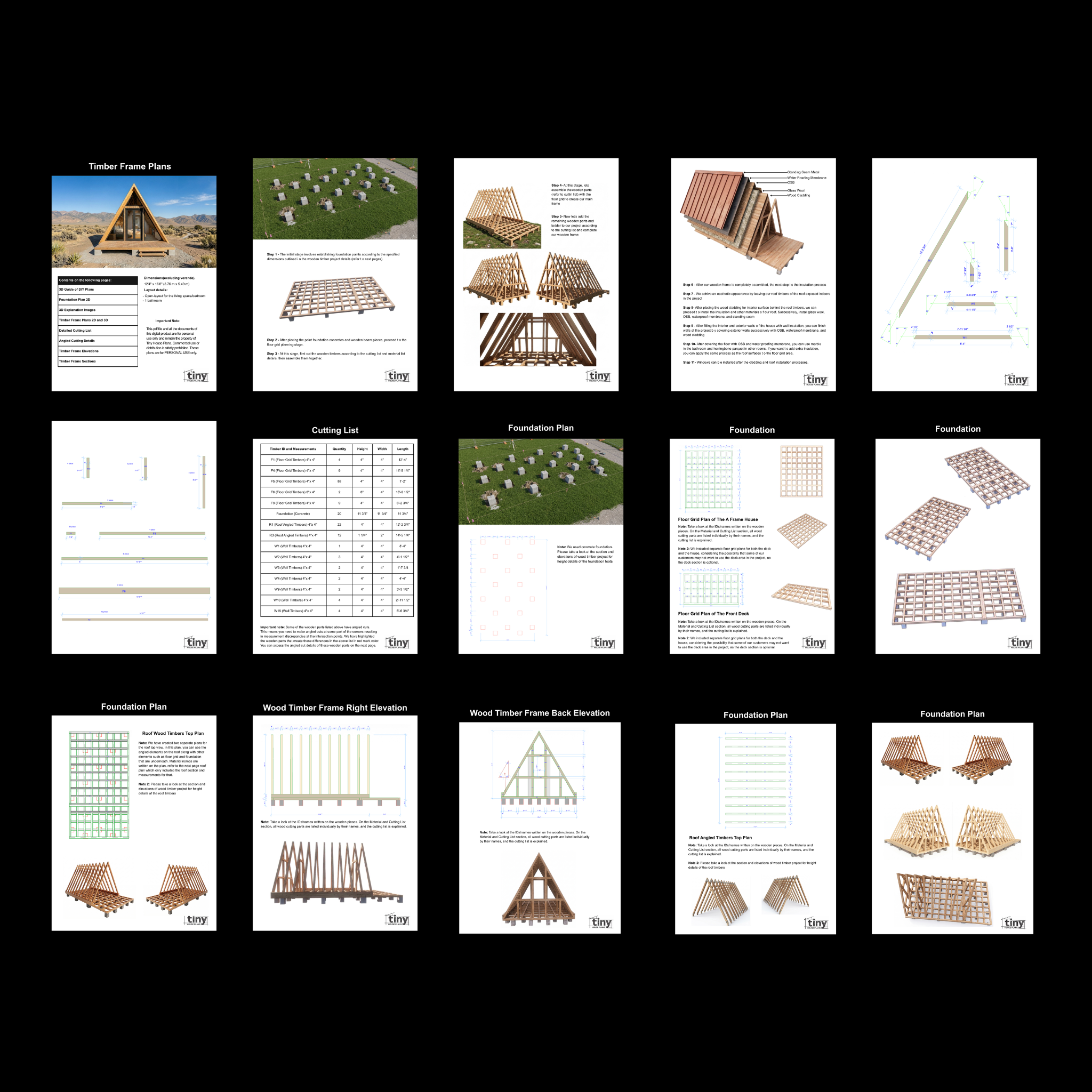

- Visual Guides: Professional 3D interior and exterior renders, plus a 3D animation video to guide your build.

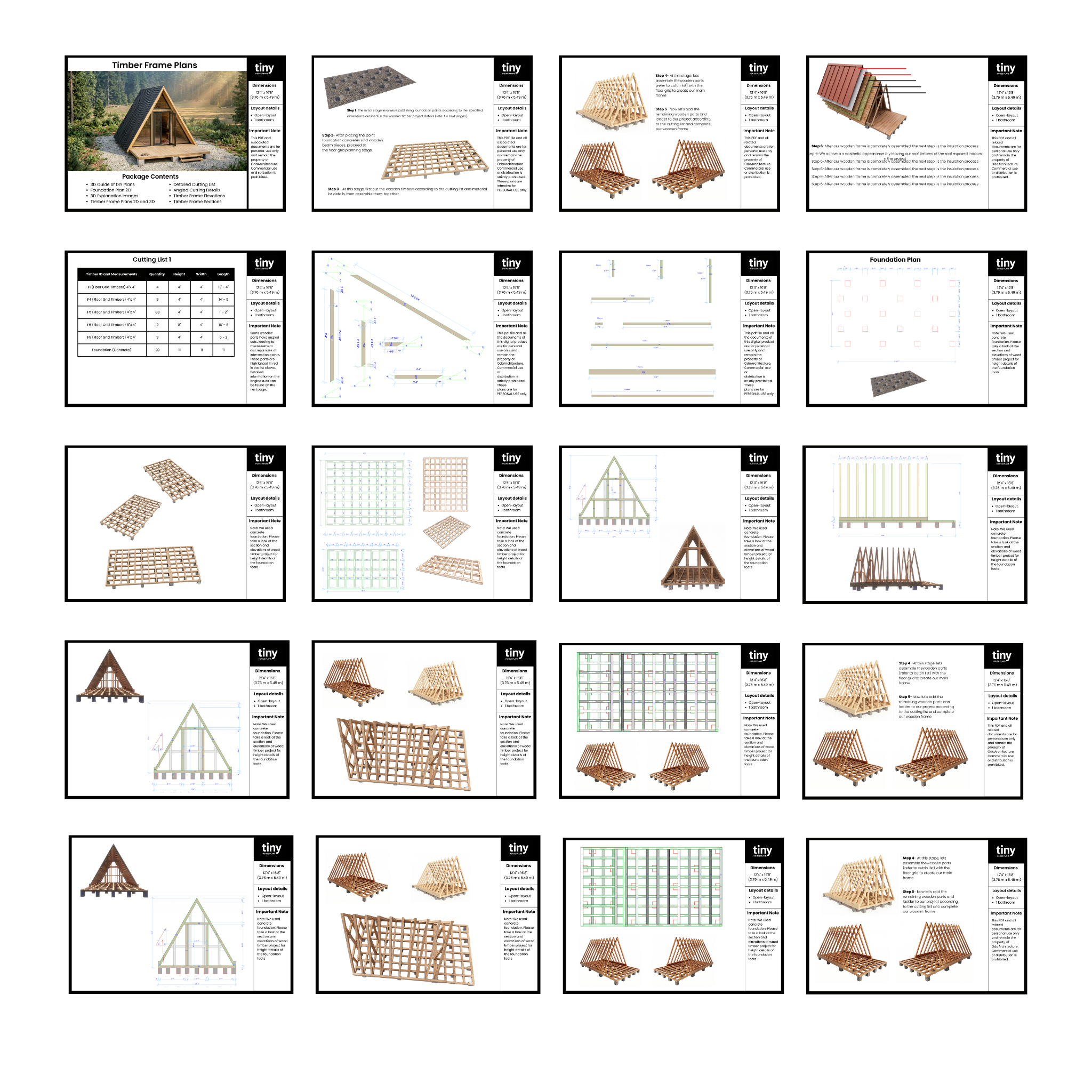

- Precision Timber Plans: 2D and 3D timber frame plans, including high-detail foundation and floor grid layouts.
- Detailed Cutting Specs: Comprehensive material and cutting lists, featuring precise angled cutting details for every timber.
- Full Architectural Set: Ground floor plans, detailed elevations, and architectural sections.
- Systems & Schedules: Integrated plumbing and electrical plans, along with complete door and window schedules.
Technical Specifications:
Footprint: 12'4" x 16'8" (3.76 m x 5.49 m).
Total Interior Area: 200 sqft (19 m2).
Foundation: Concrete point foundation.
Roofing: Standing seam metal with glass wool insulation.
Wall Construction: Wood cladding over OSB and waterproofing membrane.
Important Notes & Buyer Agreement:
Digital Product Only: This is a digital download; no physical materials will be shipped.
Professional Review Required: These plans are for inspiration and design concepts. They have not been certified by an architect or engineer and must be reviewed by a licensed local professional before construction.
Code Compliance: You are responsible for ensuring this design meets all local building codes, zoning laws, and permit requirements.
Usage: These plans remain the property of the designer and are for PERSONAL USE ONLY. Commercial distribution is strictly prohibited.
Return Policy: Due to the nature of digital products, returns and refunds are generally not accepted.
